T6-IVC

Thanks to innovative center-connection technology and optimum energy efficiency, the T6 sets the standard for room heating comfort, efficiency and ease of installation. High heat outputs, rapid room heating, even heat distribution combined with ease of installation makes the T6 the perfect radiator solution. The T6 gives you connection, positioning and installation advantages over any other radiator on the market!

Product Details

T6 IVC RADIATORS are made of cold-rolled sheet steel, and in accordance with EN 442-1, with a stylish and robust fl uting, with ribs at 19/16 inch intervals. The high outputs, included TRV insert, and 2"cc bottom center connections, and ease of installation make the T6 IVC radiator a favorite choice of professional heating engineers and contractors.

Each T6 IVC CENTER CONNECT RADIATOR is equipped with wall mounting lugs that are welded onto the back. The radiators are equipped with a removable top grille and two removable closed side panels. Each radiator is supplied with mounting brackets, a blind plug, drain plug and a pivoting special vent plug. A pre-installed thermostatic valve insert is included with each radiator.

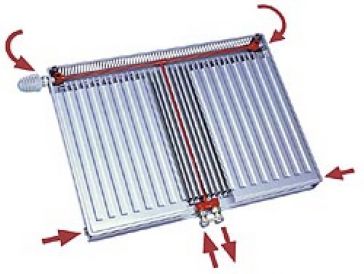

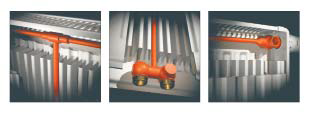

The T6 Series radiators are an advanced design giving high effi ciency characteristics. The high outputs per unit surface area for the radiator models have been achieved by ensuring excellent contact between the convector plates and both the water channels and dividing metal of the radiator panels. The convector surface is spot-welded to the metal channels, but also fi rmly locates into grooves on the water channels, thus ensuring high heat transfer rates. In addition, the internal T confi guration supply distribution insures an efficient top to bottom water flow for rapid demand response.

Standard Connections:
4 x internal thread G 1/2“ BSP side 4 corners
2 x external thread G 3/4” bottom center
Maximum positive operating pressure: 145 psi
Maximum operating temperature: 230° F

T621 IVC Depth: 31/8 inches
double panel & one row of convector plates plus side panels & top grille
T622 IVC Depth: 41/8 inches
double panel & two rows of convector plates plus side panels & top grille
Standard Heights: 12, 20, & 24 inches (Nominal)
Standard Lengths: 16 to 79 inches (Nominal)

•Additional sizes and models are available as special order

Finishes:

  1. Undercoat: electrophoretic, using water-soluble paints, conforming to DIN 55900 part 1, baked at 374° F;
  2. Finish coat: electrostatic powder coating, conforming to DIN 55900 part 2. (On request, and at a supplementary charge, a range of RAL colors can be off ered. RAL 9016 white is standard.) This coat is baked at a temperature of 410° F.
