Electric Wall Unit

Features

Color
  • Standard: white, almond.
  • Optional (upcharge applicable): metallic silver, bronze, metallic charcoal, aluminum, semi-gloss black, sand.
  • Custom colors available upon request.
Finish
  • Standard: epoxy/polyester powder paint.
Voltage
  • 120V, 240V, 1-phase.
Construction
  • Cast aluminum front cover.
  • Steel bar grilles prevent the insertion of foreign objects; smooth-finish paint is washable and anti-yellowing.
  • Automatic reset safety device.
  • Built-in white LED night light. 1
Fan
  • Whisper-quiet squirrel-cage fan.
  • Factory-lubricated motor.
Heating element
  • Nichrome element provide instant heat.
Control
  • Built-in electronic digital thermostat/timer. 2
  • Thermostat mode: pulse modulation: automatic convection to fan-forced switch-over at 1000W.
  • Timer mode: 5-30 minutes full power fan-forced boost. 3

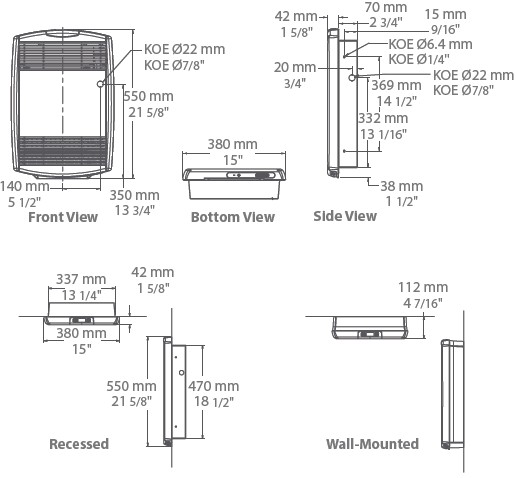

Installation
  • 4 in. (102 mm) minimum clearance to floor.
  • May be recessed in 2 in. X 3 in. stud partitions.
  • May be surface-mounted without or with the optional casted trim sleeve.
  • Mounting holes for ease of installation.
  • Large wiring compartment.
Warranty
  • 2-year warranty against defects.
  • 5-year warranty on the heating element.
Application
  • Bathroom, kitchen, family room, entrance way.
